SpecificationsMeasurement
Wheel Diameter 19.5 (in)
Wheel Width 6.75 (in)
Mounting System Hub Pilot
Bolt Pattern 8 x 225mm
Bolt Hole Diameter 17 mm
Hub Bore 170.1mm
Backspacing 8.87 (in)
Outset 141.3 (mm)
Inset 122.2 (mm)
Max Load 4800 (lbs)
Max Inflation 120 psi

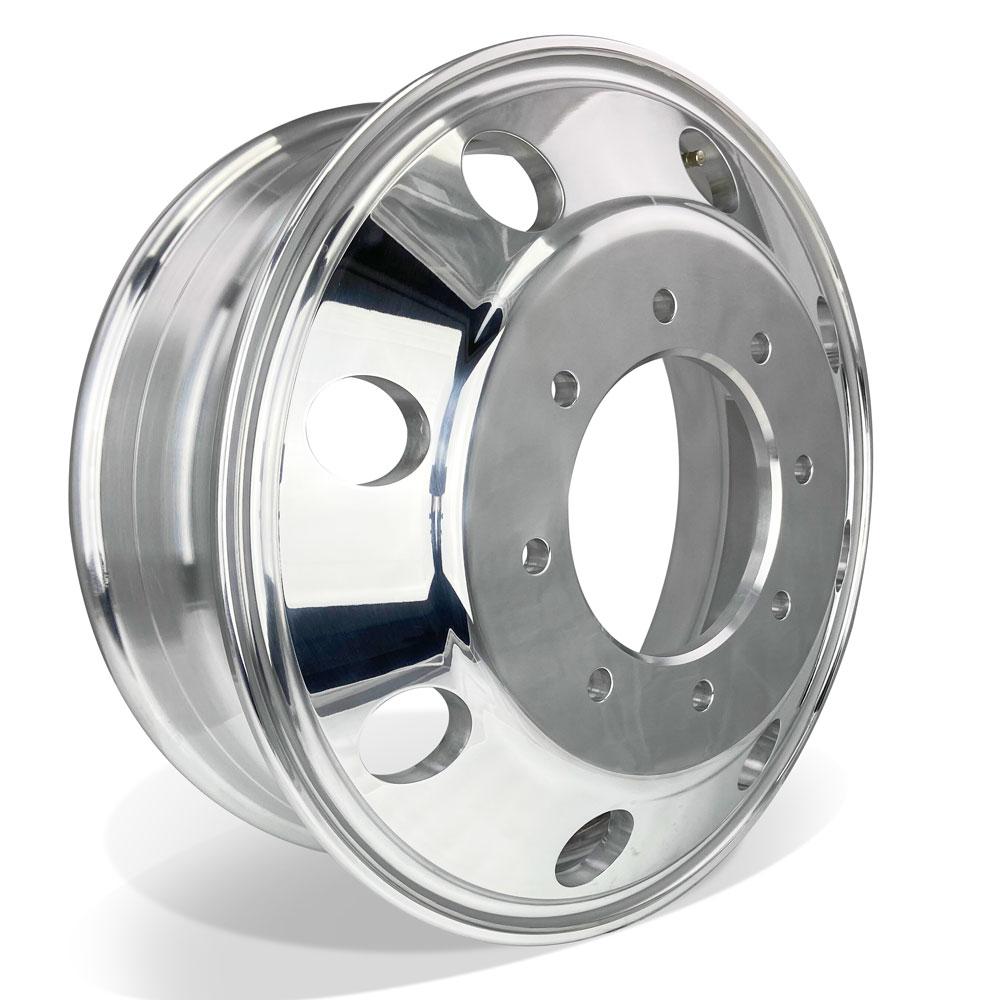

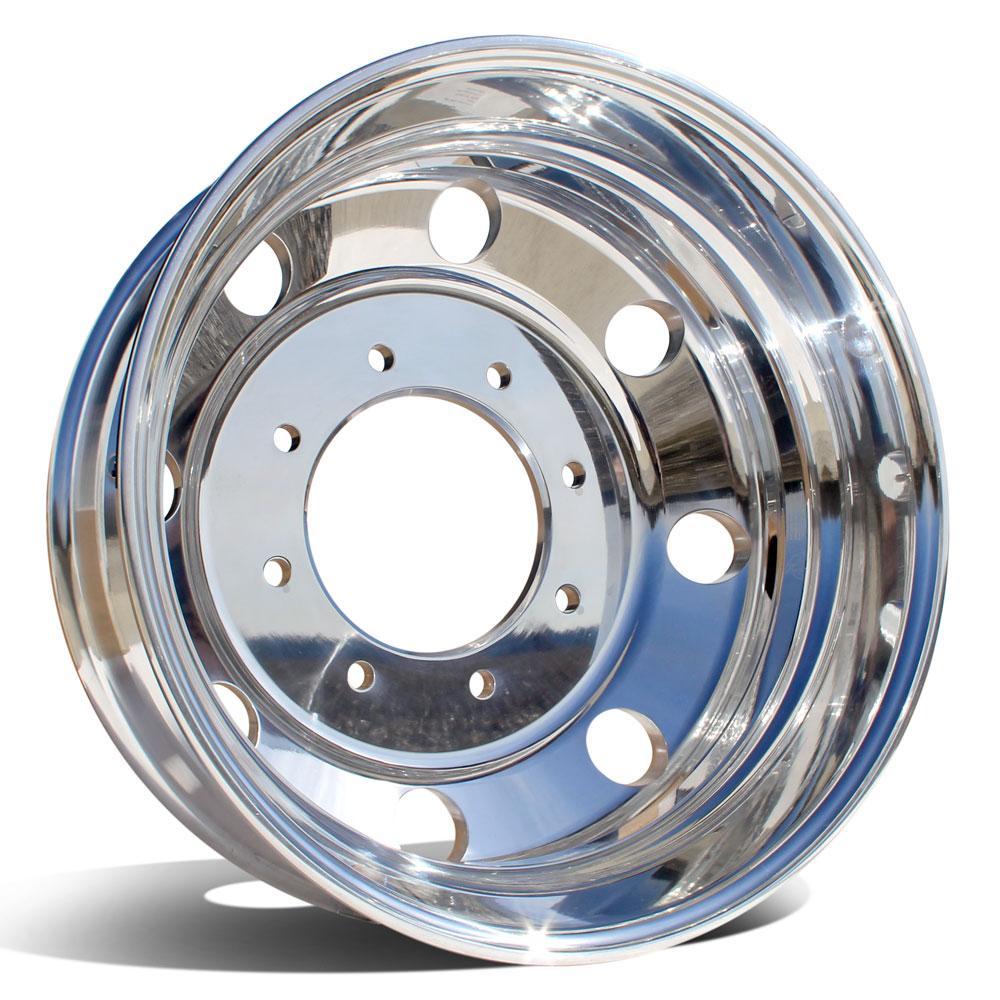

Northstar Part Number: 995670
Size: 19.5 x 6.75
Finish: Mirror Polish Both Sides
Position: All Position Wheel (Front or Rear)
8-Hole Hub Pilot 225mm Bolt Circle, 170.3mm Center Bore
Weight: 42 Lbs
Max Load: 4500 Lbs @ PSI
Warranty Info: 5 year Warranty
Fits the following applications:
1998 Ford F53 Motorhome Chassis
1999 Ford F53 Motorhome Chassis
2000 Ford F53 Motorhome Chassis
2001 Ford F53 Motorhome Chassis
2002 Ford F53 Motorhome Chassis
2003 Ford F53 Motorhome Chassis
2004 Ford F53 Motorhome Chassis
1998 Ford F450
1999 Ford F450
2000 Ford F450
2001 Ford F450
2002 Ford F450
2003 Ford F450
2004 Ford F450
1998 Ford F550
1999 Ford F550
2000 Ford F550
2001 Ford F550
2002 Ford F550
2003 Ford F550
2004 Ford F550
