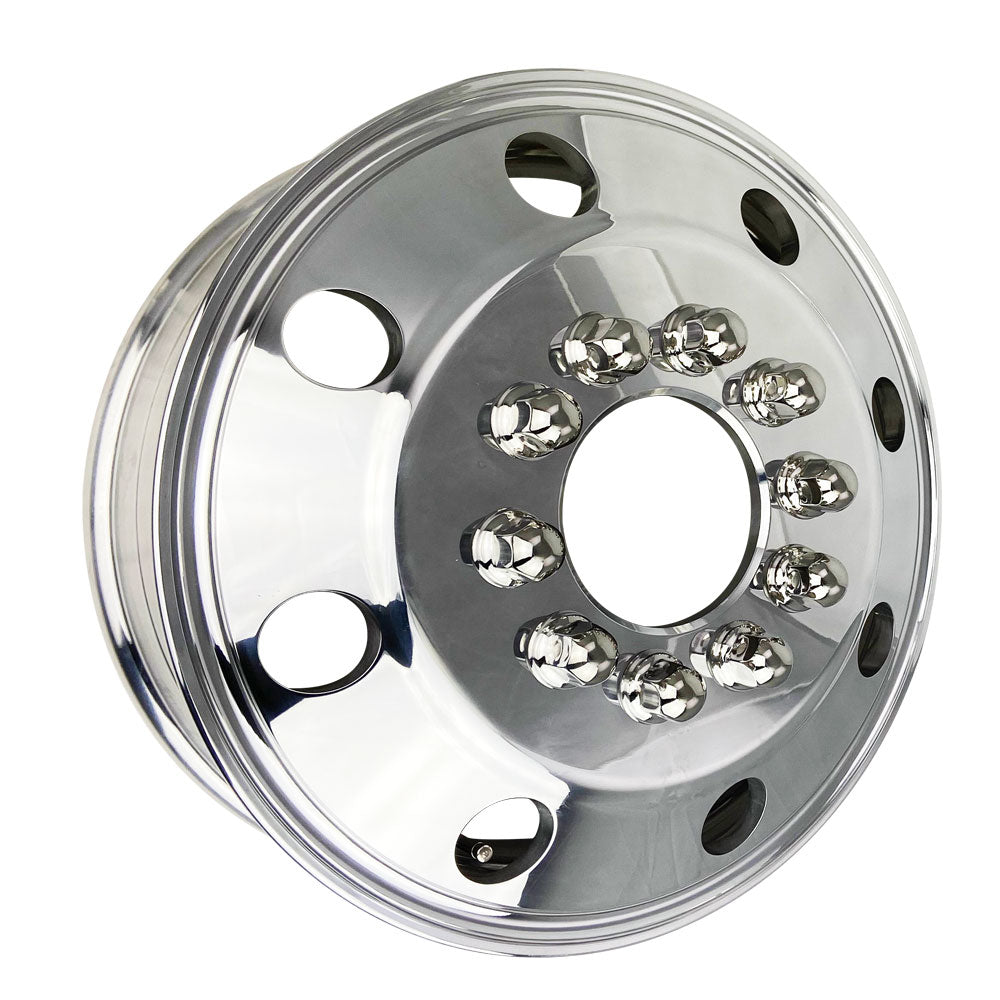

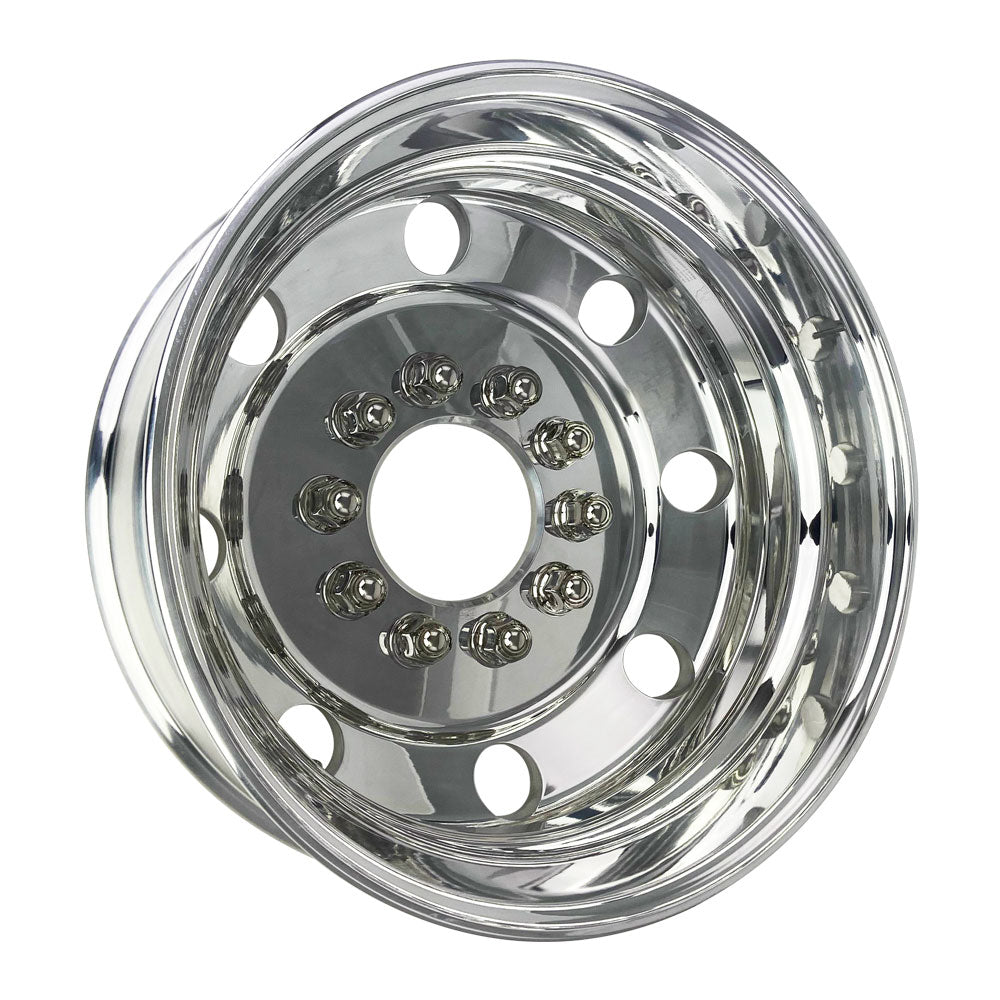

19.5x6.00 Northstar 10x7.25" Hub Pilot Mirror Polished Both Sides (Chevy/GMC 3500HD 1996-2005)
19.5x6.00 Northstar 10x7.25" Hub Pilot Mirror Polished Both Sides (Chevy/GMC 3500HD 1996-2005)

19.5x6.00 Northstar 10x7.25" Hub Pilot Mirror Polished Both Sides (Chevy/GMC 3500HD 1996-2005)

SKU: 995605
Availability: Many In Stock
Northstar Part Number: 995605 Size: 19.5 x 6.00 Finish: Mirror Polish Both Sides Position: All Position Wheel (Front or Rear) 10-Hole Hub Pilot 7.25" Bolt Circle, 5.25" Center Bore Weight: 38 Lbs Max Load:  4000 Lbs @  PSI Warranty Info: 5 year Warranty Recommended Tire Size: 245/70R19.5 225/70R19.5     Fits the following applications: 1996 Chevy/GMC 3500HD 10 Lug 1997 Chevy/GMC 3500HD 10 Lug 1998 Chevy/GMC 3500HD 10 Lug 1999 Chevy/GMC 3500HD 10 Lug 2000 Chevy/GMC 3500HD 10 Lug 2001 Chevy/GMC 3500HD 10 Lug 2002 Chevy/GMC 3500HD 10 Lug 2003 Chevy/GMC 3500HD 10 Lug 2004 Chevy/GMC 3500HD 10 Lug 2005 Chevy/GMC 3500HD 10 Lug

Product Specs

SpecificationsMeasurement

Wheel Diameter 19.5 (in)

Wheel Width 6.0 (in)

Mounting System Hub Pilot

Bolt Pattern 10 x 7.25"

Hub Bore 5.25"

Backspacing 8.32 (in)

Outset 136.39 (mm)

Inset 117.74 (mm)

Max Load 4000 (lbs)

Max Inflation 120 psi

19.5x6.00 Northstar 10x7.25" Hub Pilot Mirror Polished Both Sides (Chevy/GMC 3500HD 1996-2005)

19.5x6.00 Northstar 10x7.25" Hub Pilot Mirror Polished Both Sides (Chevy/GMC 3500HD 1996-2005)

$0.00
19.5x6.00 Northstar 10x7.25" Hub Pilot Mirror Polished Both Sides (Chevy/GMC 3500HD 1996-2005)
19.5x6.00 Northstar 10x7.25" Hub Pilot Mirror Polished Both Sides (Chevy/GMC 3500HD 1996-2005)

19.5x6.00 Northstar 10x7.25" Hub Pilot Mirror Polished Both Sides (Chevy/GMC 3500HD 1996-2005)

$0.00
Description

Northstar Part Number: 995605

Size: 19.5 x 6.00

Finish: Mirror Polish Both Sides
Position: All Position Wheel (Front or Rear)

10-Hole Hub Pilot 7.25" Bolt Circle, 5.25" Center Bore

Weight: 38 Lbs
Max Load:  4000 Lbs @  PSI

Warranty Info: 5 year Warranty

Recommended Tire Size:
245/70R19.5
225/70R19.5



Fits the following applications:

1996 Chevy/GMC 3500HD 10 Lug
1997 Chevy/GMC 3500HD 10 Lug
1998 Chevy/GMC 3500HD 10 Lug
1999 Chevy/GMC 3500HD 10 Lug
2000 Chevy/GMC 3500HD 10 Lug
2001 Chevy/GMC 3500HD 10 Lug
2002 Chevy/GMC 3500HD 10 Lug
2003 Chevy/GMC 3500HD 10 Lug
2004 Chevy/GMC 3500HD 10 Lug
2005 Chevy/GMC 3500HD 10 Lug
