SpecificationsMeasurement
Wheel Diameter 22.5 (in)
Wheel Width 8.25 (in)
Mounting System Hub Pilot
Bolt Pattern 10 x 285.75mm
Bolt Hole Diameter 26mm
Hub Bore 220mm

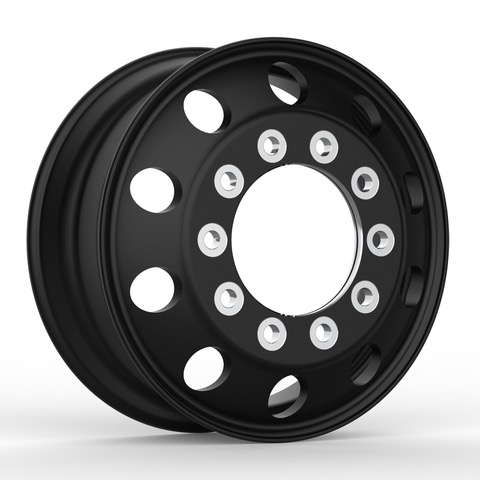

This is the standard 11r22.5 rim that will fit most new trucks including:
Peterbilt & Kenworth Trucks
Freightliner & International Trucks
Mack, Western Star, & Volvo
Wheel Size: 22.5 x 8.25
Part Number: 125820BF
Finish: Black
Position: Front / Steering
10-Hole, 285.75mm Bolt Circle, 220mm Bore
Hub-Piloted Dual-Mounting (Two-Piece Flange Nut) fits most newer Semi Trucks and Trailer
Max Load & Inflation
7400lbs @ 130psi
Installed Valve: TR545D
Wheel Offset: 6.59"
Disc Width: .875"
5 Year Warranty
Recommended Tire Size:
255/70R22.5
275/80R22.5
295/75R22.5
11R22.5
