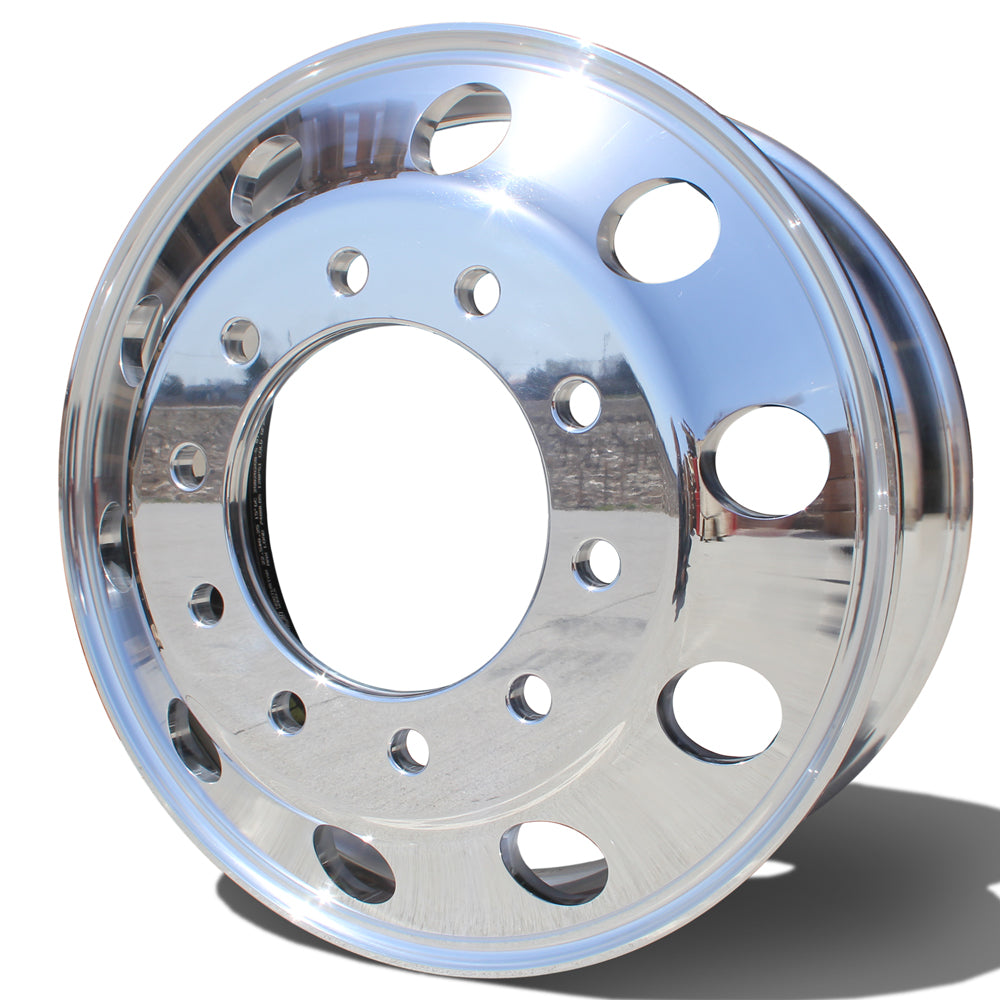

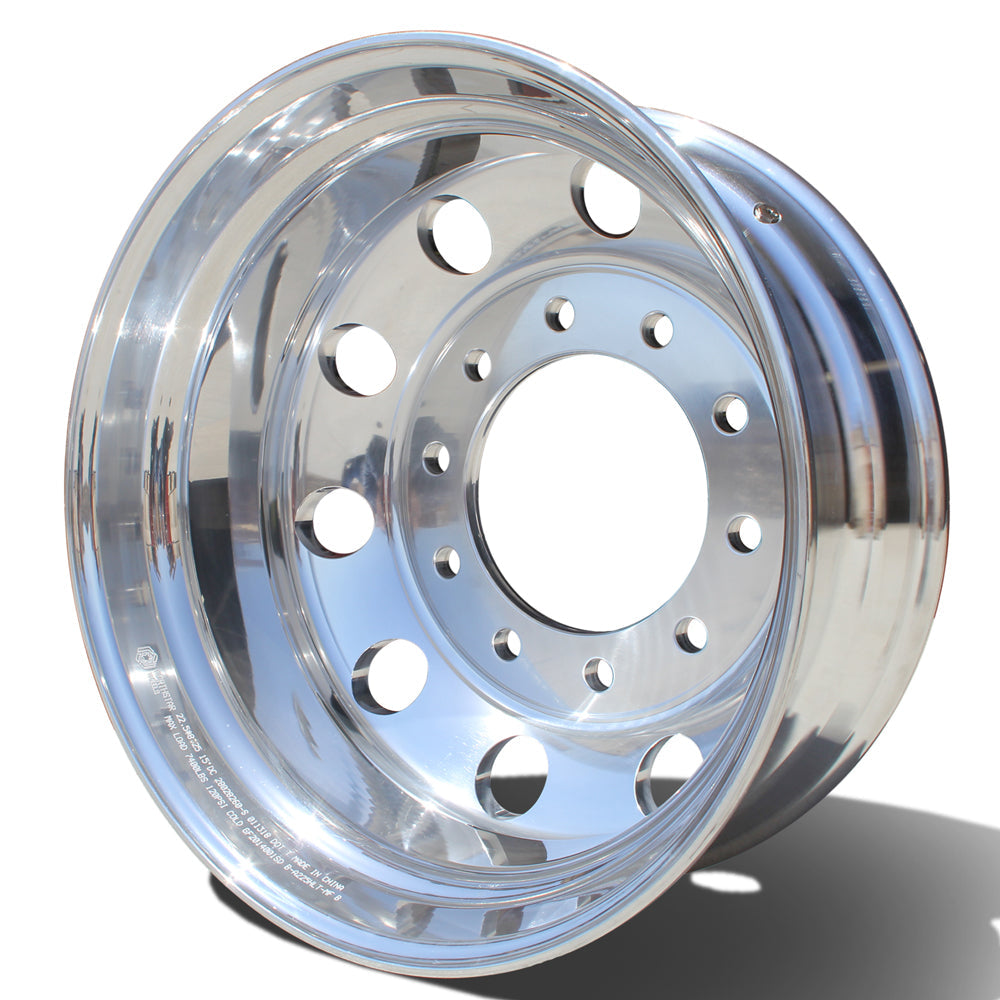

22.5x8.25 NORTHSTAR 10X285MM HUB PILOT MIRROR POLISHED BOTH SIDES
22.5x8.25 NORTHSTAR 10X285MM HUB PILOT MIRROR POLISHED BOTH SIDES

22.5x8.25 NORTHSTAR 10X285MM HUB PILOT MIRROR POLISHED BOTH SIDES

SKU: 125820
Availability: In Stock
This is the standard 11r22.5 rim that will fit most new trucks including: Peterbilt & Kenworth Trucks Freightliner & International Trucks Mack, Western Star, & Volvo Wheel Size: 22.5 x 8.25 Part Number: 125820 Finish: Aluminum Polished Position: Front / Steering 10-Hole, 285.75mm Bolt Circle, 220mm Bore Hub-Piloted Dual-Mounting (Two-Piece Flange Nut) fits most newer Semi Trucks and Trailer Max Load & Inflation7400lbs @ 130psi Installed Valve: TR545D Wheel Offset: 6.59" Disc Width: .875" 5 Year Warranty Recommended Tire Size: 255/70R22.5 275/80R22.5 295/75R22.5 11R22.5

Product Specs

SpecificationsMeasurement

Wheel Diameter 22.5 (in)

Wheel Width 8.25 (in)

Mounting System Hub Pilot

Bolt Pattern 10 x 285.75mm

Bolt Hole Diameter 26mm

Hub Bore 220mm

22.5x8.25 NORTHSTAR 10X285MM HUB PILOT MIRROR POLISHED BOTH SIDES

22.5x8.25 NORTHSTAR 10X285MM HUB PILOT MIRROR POLISHED BOTH SIDES

$275.00
22.5x8.25 NORTHSTAR 10X285MM HUB PILOT MIRROR POLISHED BOTH SIDES
22.5x8.25 NORTHSTAR 10X285MM HUB PILOT MIRROR POLISHED BOTH SIDES

22.5x8.25 NORTHSTAR 10X285MM HUB PILOT MIRROR POLISHED BOTH SIDES

$275.00
Description

This is the standard 11r22.5 rim that will fit most new trucks including:
Peterbilt & Kenworth Trucks
Freightliner & International Trucks
Mack, Western Star, & Volvo

Wheel Size: 22.5 x 8.25
Part Number: 125820
Finish: Aluminum Polished
Position: Front / Steering
10-Hole, 285.75mm Bolt Circle, 220mm Bore

Hub-Piloted Dual-Mounting (Two-Piece Flange Nut) fits most newer Semi Trucks and Trailer
Max Load & Inflation
7400lbs @ 130psi

Installed Valve: TR545D
Wheel Offset: 6.59"
Disc Width: .875"
5 Year Warranty

Recommended Tire Size:
255/70R22.5
275/80R22.5
295/75R22.5
11R22.5
