Stud-Pilot / Budd Close Up

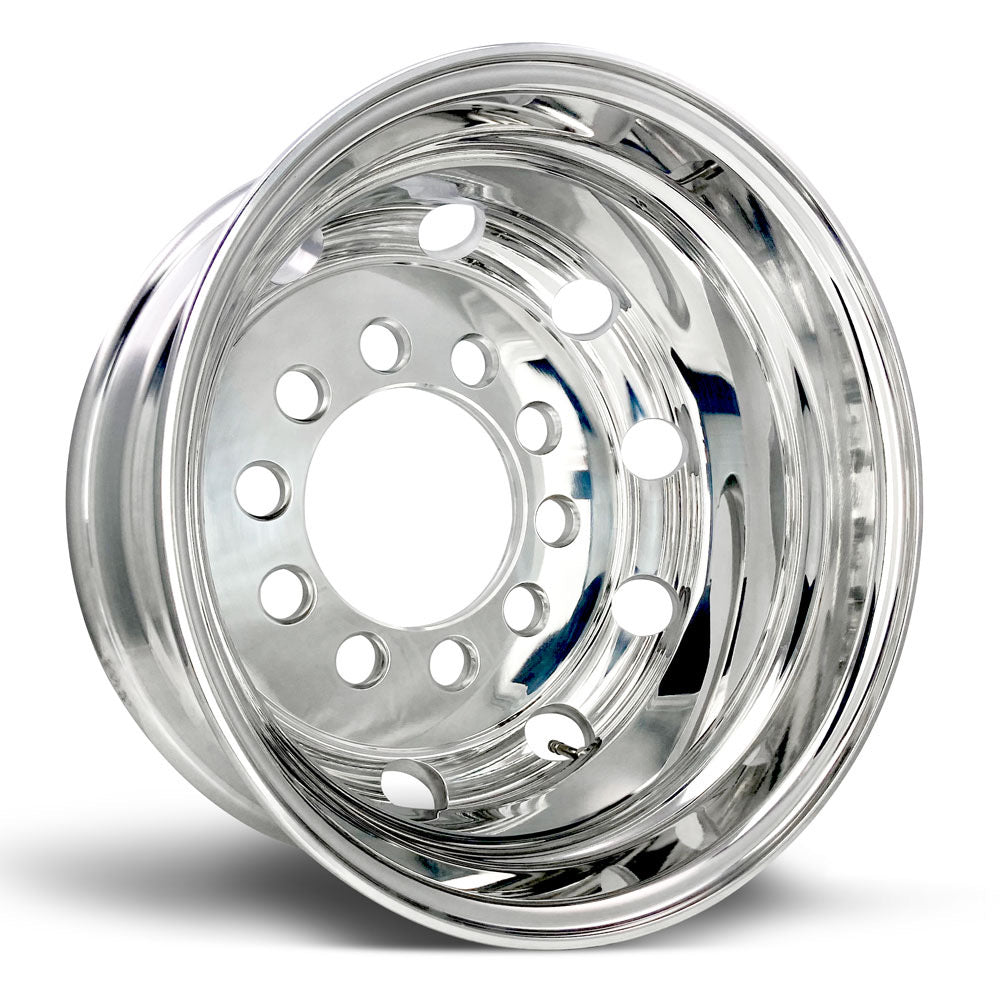

17.5x6.75 Northstar 10x8.75" Stud Pilot Mirror Polished Both Sides
Stud-Pilot / Budd Close Up

17.5x6.75 Northstar 10x8.75" Stud Pilot Mirror Polished Both Sides

SKU: 075670
Availability: Many In Stock
Replaces Alcoa Part Number: 663077, 663072, 663070 Size: 17.5 x 6.75Finish: Mirror Polished Both SidesPosition: *Trailer Only*10-Hole (1.50"), 8.75" Bolt Circle, 6.495" BoreWheel Offset: 5.55"Backspacing: N/ADisc Thickness: 0.83"Weight: 31 LbsMax Load: 5070 Lbs @ 125 PSIBolt Hole Diameter: 1.22"Hand Holes: 10 Approved Tire Size: 215/70R17.5 235/70R17.5 245/70R17.5 Typical Applications:

Product Specs

SpecificationsMeasurement

Wheel Diameter 17.5 (in)

Wheel Width 6.75 (in)

Mounting System Stud Pilot (Budd)

Bolt Pattern 10 x 8.75"

Hub Bore 6.50"

Outset 5.5 (mm)

Max Load 5070 (lbs)

Max Inflation 125 psi

17.5x6.75 Northstar 10x8.75" Stud Pilot Mirror Polished Both Sides

17.5x6.75 Northstar 10x8.75" Stud Pilot Mirror Polished Both Sides

$400.00
17.5x6.75 Northstar 10x8.75" Stud Pilot Mirror Polished Both Sides
Stud-Pilot / Budd Close Up

17.5x6.75 Northstar 10x8.75" Stud Pilot Mirror Polished Both Sides

$400.00
Description

Replaces Alcoa Part Number: 663077, 663072, 663070

Size: 17.5 x 6.75

Finish: Mirror Polished Both Sides
Position: *Trailer Only*

10-Hole (1.50"), 8.75" Bolt Circle, 6.495" Bore
Wheel Offset: 5.55"
Backspacing: N/A
Disc Thickness: 0.83"

Weight: 31 Lbs
Max Load: 5070 Lbs @ 125 PSI
Bolt Hole Diameter: 1.22"
Hand Holes: 10





Approved Tire Size:
  • 215/70R17.5
  • 235/70R17.5
  • 245/70R17.5


Typical Applications:
