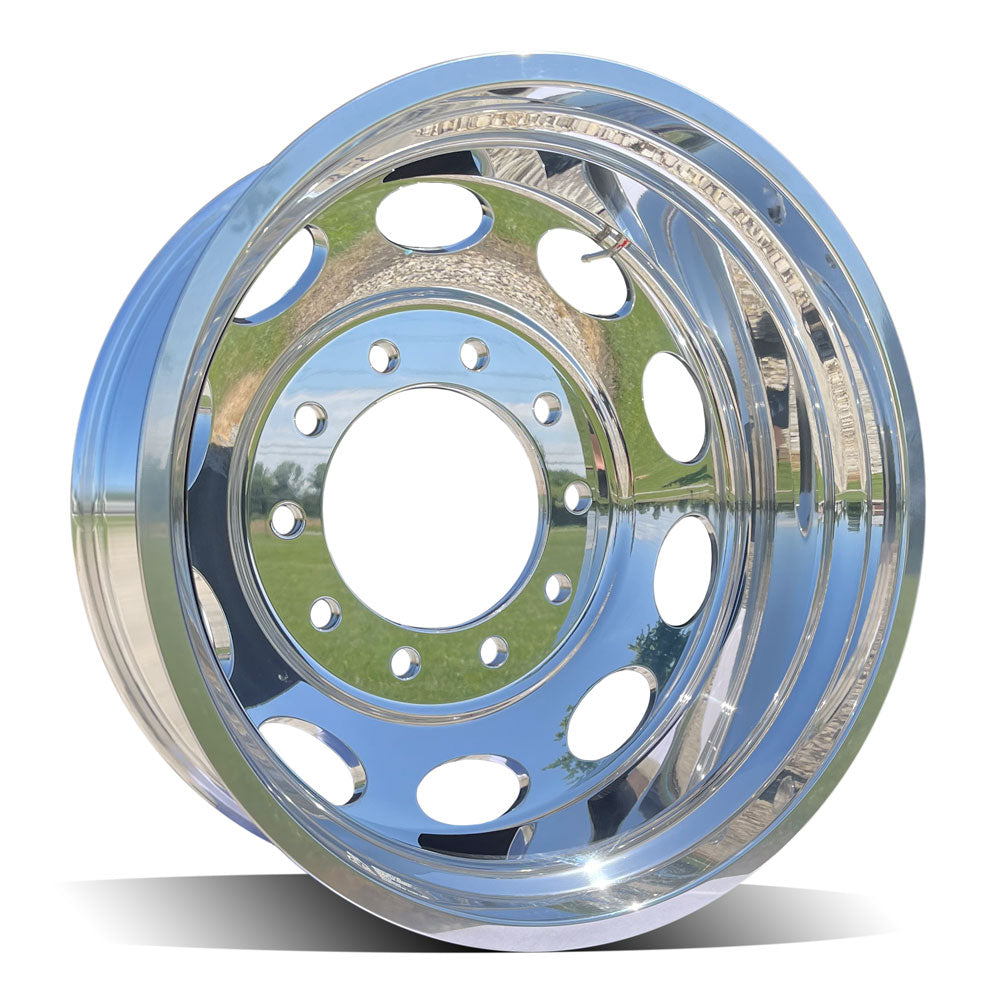

24x8.25 Northstar 10x285mm Hub Pilot Mirror Polish Both Sides "Oval Holes"

10 on 285mm15off22-2424" Wheels8.25" WideAluminum WheelFront WheelHub Pilot

Specifications

FinishMirror Polish
MaterialAluminum (6061 Fully Forged)
Bolt Pattern10 x 285.75mm
Backspacing10.35"
Hub Bore Diameter220mm
Max Load3500 lbs
Weight55 lbs
Valve StemTR554D
Vent Holes10 Oval (4.35/2.35)
Disc Thickness0.91"
Mounting Set UpHub-Piloted Dual
Wheel Diameter24" Wheel

Northstar 24” Forged Wheels – Model 124821 (Oval Holes) – Strength & Precision

Northstar 24” wheels are NOT shaved down from 24.5” wheels—they are engineered directly to 24” for maximum strength, durability, and performance. Say goodbye to aftermarket wheel modifications that compromise quality. Northstar’s fully forged construction ensures exceptional balance, reliability, and longevity with every drive.

🔹 Model: 124821 (Oval Holes)

🔹 Size: 24 x 8.25 – Designed for Low Pro 24” Light Truck Tires

🔹 Bolt Pattern: 10x285.75mm – Compatible with 8 to 10 lug adapters

Upgrade with confidence—Northstar forged wheels deliver superior quality, precision, and style.
