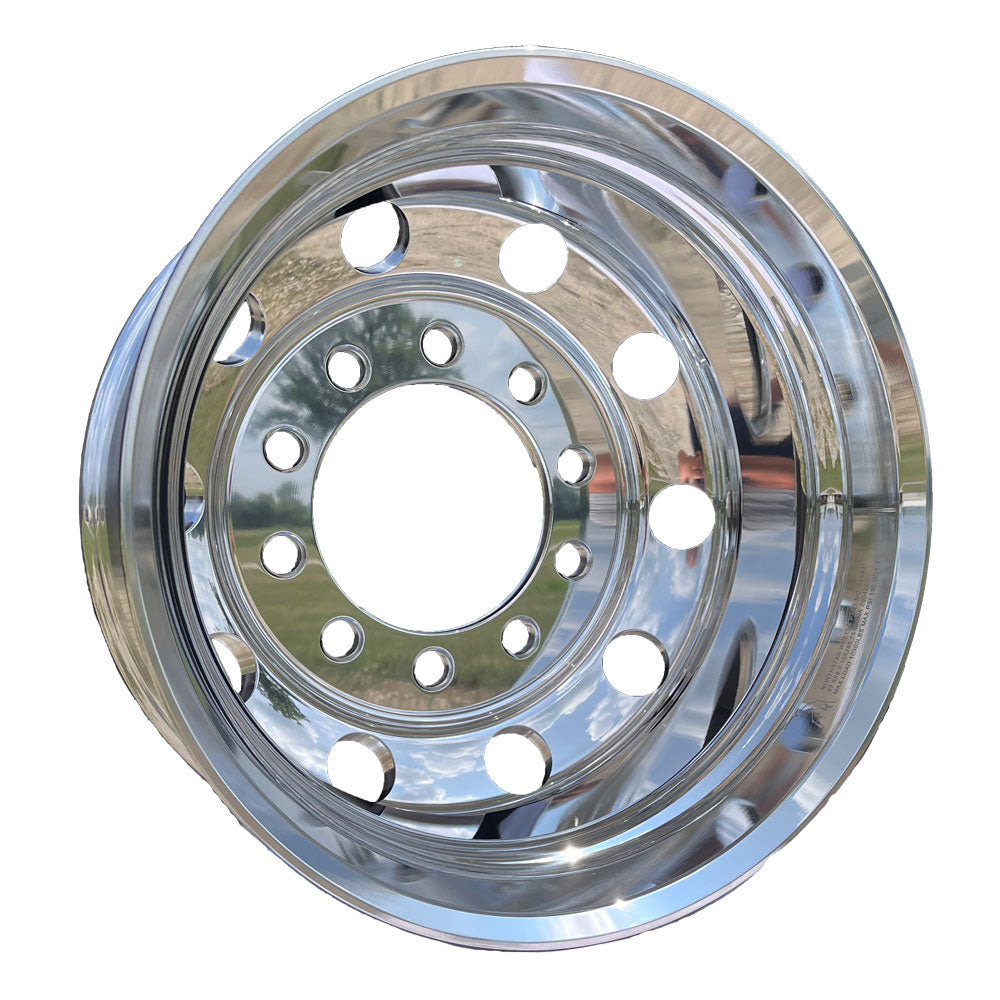

22.5x9.00 Northstar 10x11.25" Mirror Polish Stud Pilot-Budd Style All Position (Dual)
Specifications
| Finish | High Polished |
| Material | Aluminum (6061 Fully Forged) |
| Bolt Pattern | 10 x 11.25" |
| Hub Bore Diameter | 8.72" |
| Vent Holes | 10 |
| Mounting Set Up | Stud-Piloted (Budd) Dual |
| Wheel Diameter | 22.5" Wheel |
Northstar Part Number: 025901
Size: 22.5 x 9
Finish: Mirror Polish
Position: All Position
10-Hole Hub Pilot 11.25" Bolt Circle, 8.72" Center Bore
Offset: 7"
Backspacing: N/A
Disc Thickness: N/A
Weight: N/A
Max Load: 9900 Lbs @ 130 PSI
Bolt Hole Diameter: 32mm
Decorative Outer Vent Hole Size (Hand Hole): N/A
Warranty Info: 5 Year
Replaces Part:
Approved Tire Size:
Typical Applications:
- Alcoa 893001, 893002, 893007
- Accuride 28608
Approved Tire Size:
- 315/80R22.5
- 295/60R22.5
- 12R22.5
Typical Applications:
- Class 8 Trucks
- Kenworth
- Peterbilt
- Freightliner
- Volvo
- International
- Mack
- Sterling
Interested in this wheel?
Contact us or find a dealer near you.
