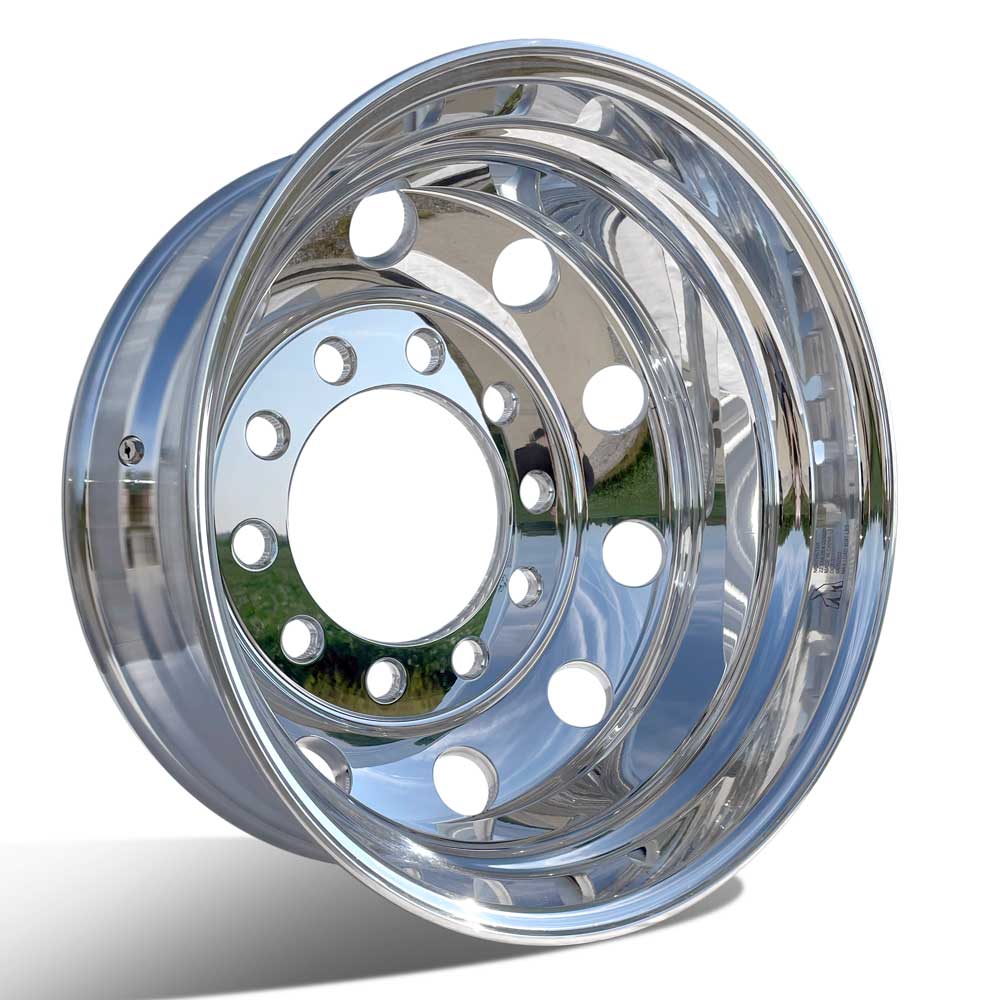

22.5x8.25 Northstar 10x11.25" Stud Pilot (Budd) Mirror Polish Both Sides
Specifications
| Part # | 025820 |
| Finish | Mirror Polish |
| Material | Aluminum (6061 Fully Forged) |
| Bolt Pattern | 10 x 11.25" |
| Hub Bore Diameter | 8.72" |
| Max Load | 7400 lbs |
| Weight | 52 lbs |
| Vent Holes | 10 @ 2.6" |
| Mounting Set Up | Stud-Piloted (Budd) Dual |
| Wheel Diameter | 22.5" Wheel |
Upgrade your truck’s performance and style with the Northstar Part #025820 22.5 x 8.25 mirror-polished wheel. Engineered for all-position use, this versatile wheel offers a combination of durability, strength, and aesthetic appeal, making it a perfect choice for pre-2000 model year trucks.
Key Features:
• Mirror-Polished Finish: Provides a sleek, shiny appearance that enhances the overall look of your vehicle while resisting corrosion.
• Heavy-Duty Performance: Designed to handle a maximum load of 7,400 lbs at 120 psi, ensuring reliable performance for heavy-duty applications.
• Versatile Compatibility: Fits all positions on vehicles with a 10-hole stud piloted configuration, an 11.25” bolt circle, and an 8.72” center bore. Compatible with pre-2000 model year trucks, replacing Alcoa and Accuride part numbers 883117, 883111, 883112, 883110, and 28615.
• Pre-Installed Valve Stem: Comes with a pre-installed valve stem for convenience and ease of installation, saving you time and effort.
• Secure Mounting: Requires large ball and seat-style nuts for secure mounting, providing stability and safety during operation.
Additional Information:
• Outset: 6.60”
• Hand Holes: 10
• Warranty: 5-year warranty for added peace of mind.
Enhance your truck’s capabilities with the Northstar 22.5 x 8.25 wheel, designed for durability, style, and optimal performance on the road.
