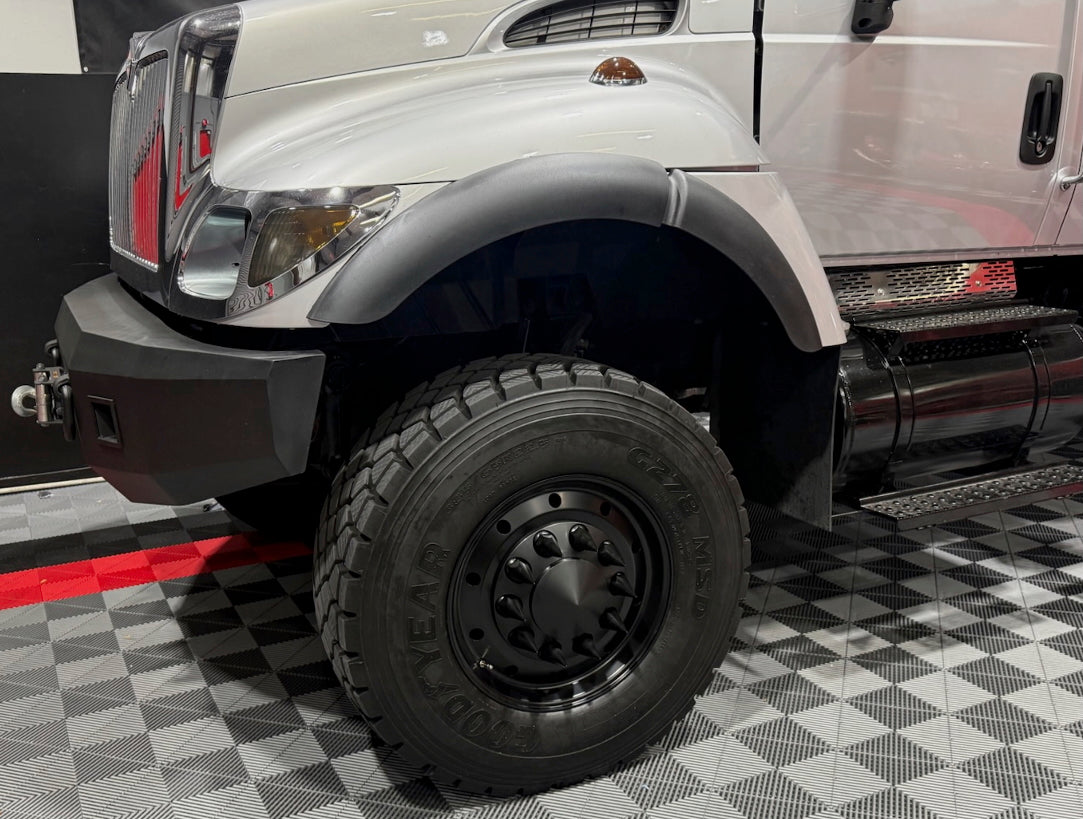

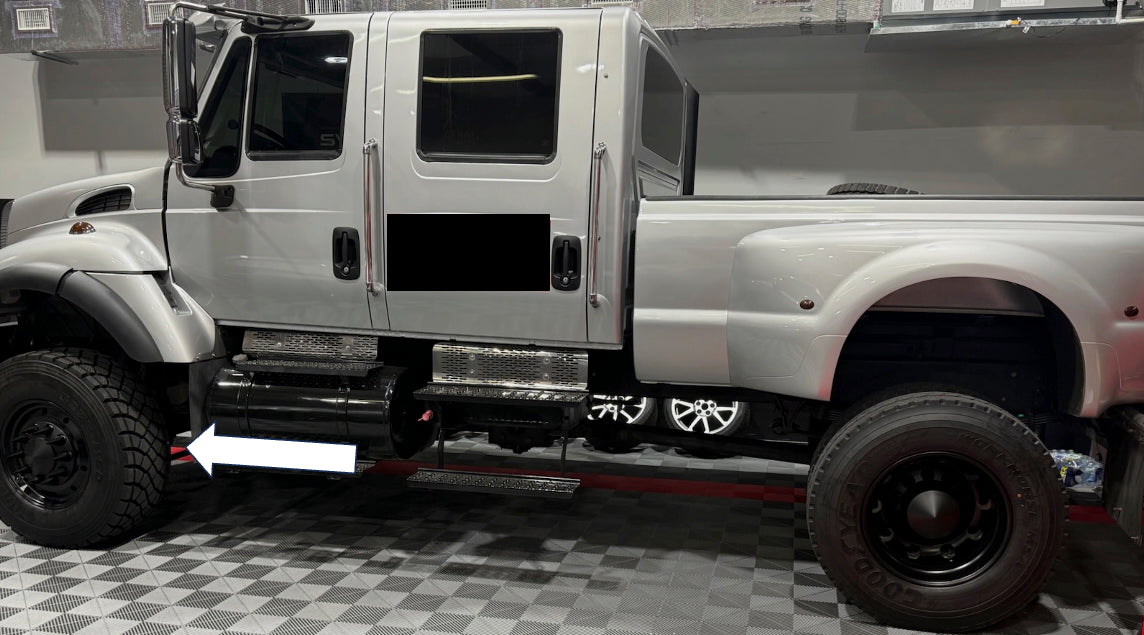

22.5x12.25 Northstar 10x285mm Hub Pilot Satin Black "Lunar" Flat Face Wheel Front Only (4.75" offset)

Northstar “Lunar” 22.5” x 12.25” Forged Aluminum Steer Wheel – Satin Black with Machined Bolt Holes

4.75” Offset | Front Application | Heavy-Duty Class 8 Trucks

Step into the next generation of wheel design with the Northstar “Lunar” Forged Aluminum Steer Wheel. Measuring 22.5 x 12.25 with a 4.75” offset, this wheel is purpose-built for front/steer axle applications on Class 8 trucks. The all satin black finish, enhanced with machined accents around the bolt holes, delivers a bold, modern look while standing up to the toughest conditions on the road and job site.

Designed for heavy-duty vocational use—cement mixers, dump trucks, refuse haulers, and more—the Lunar steer wheel combines forged aluminum strength with aggressive styling for a premium upgrade that doesn’t compromise performance.

Wheel Specifications

• Style: Lunar

• Size: 22.5” x 12.25”

• Offset: 4.75” (Front Application)

• Position: Steer Only

• Finish: Satin Black with Machined Bolt Holes

• Construction: Forged Aluminum – lightweight yet extremely strong

Fits These Applications

• Class 8 Trucks

• Kenworth

• Peterbilt

• Freightliner

• Volvo

• International

• Mack

• Sterling

• Cement & Concrete Mixers

• Waste, Refuse & Trash Trucks

• Dump Trucks

Approved Tire Sizes

• 385/65R22.5

• 425/65R22.5

Replaces OEM/Comparable Parts

• 823640

• 823641

• 824627

• 824621

• 29374

Why Choose the Northstar Lunar Wheel?

• Exclusive “Lunar” Style – Premium satin black finish with precision-machined bolt holes for a bold, modern design.

• Forged Aluminum Strength – Lightweight yet strong, improving efficiency and handling under heavy loads.

• Steer-Only Application – Flat face with 4.75” offset engineered specifically for front axle performance.

• Severe-Duty Ready – Designed for the extreme demands of vocational and fleet applications.

• OEM Replacement Fit – Direct replacement for multiple standard part numbers.

Ideal For

• Fleets upgrading to modern black/machined aluminum wheels

• Heavy-duty vocational trucks (refuse, concrete, dump, construction)

• Owner-operators looking for unique styling without sacrificing durability

• Class 8 steer axle replacements with a premium finish

The Northstar “Lunar” 22.5 x 12.25 Satin Black Forged Aluminum Steer Wheel with machined bolt holes and 4.75” offset combines strength, precision, and modern styling—making it the ultimate choice for today’s Class 8 front axle applications.
