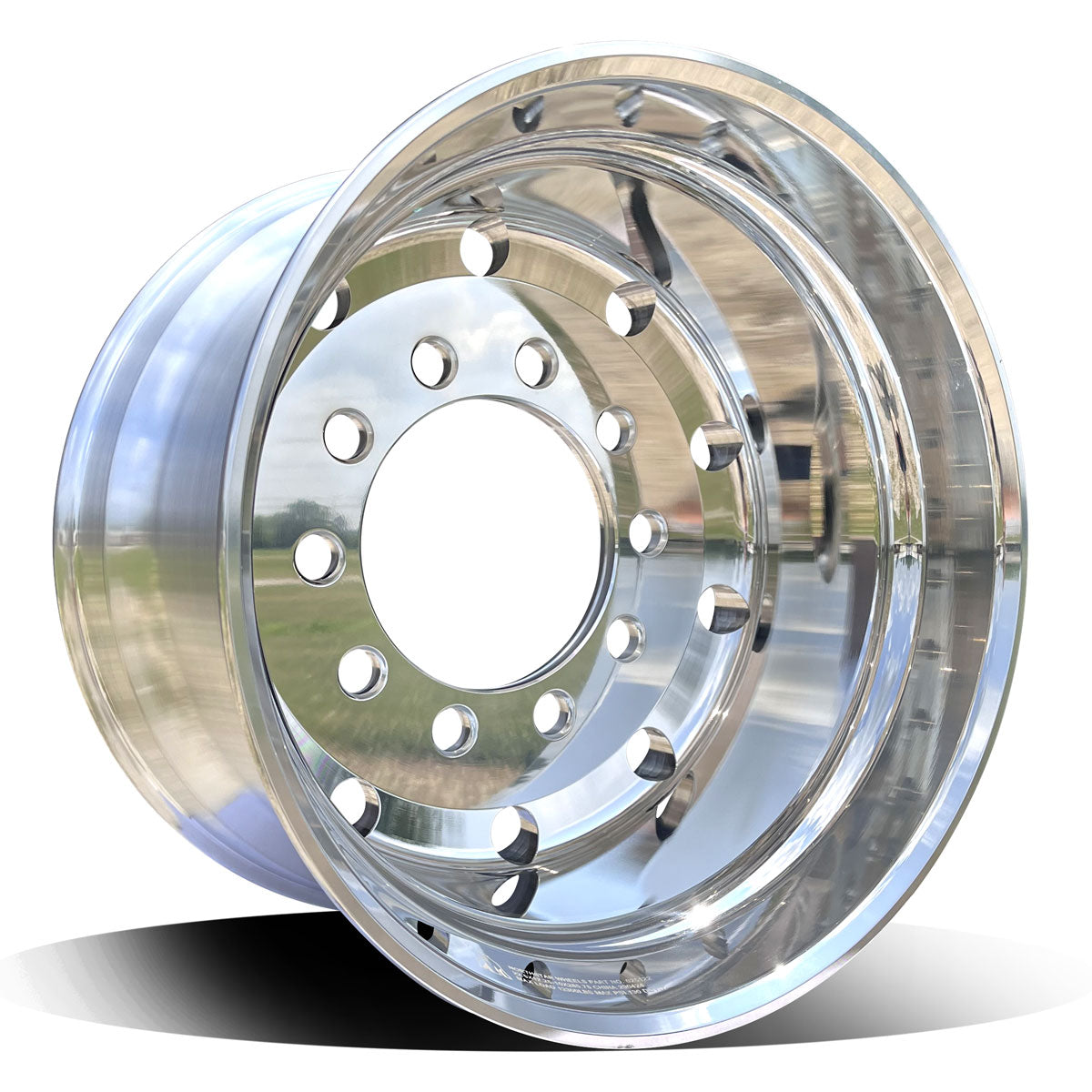

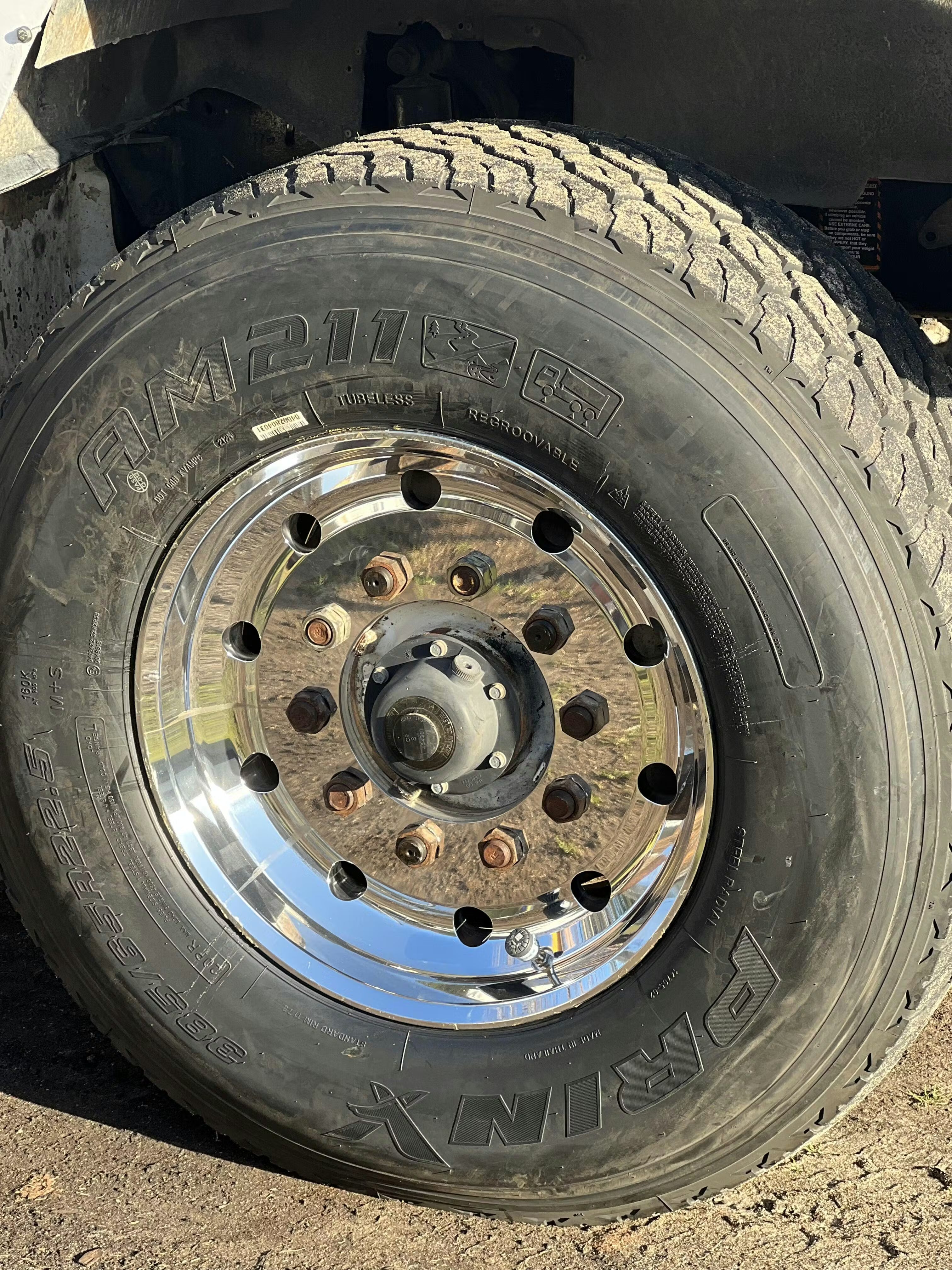

22.5x12.25 Northstar 10x11.25" Stud Pilot Mirror Polish Both Sides 2.88" Offset

Designed with versatility in mind, these wheels are tailored to fit pre-2000 model trucks equipped with older Budd-style bolt holes, utilizing 1.5” ball and seat lug nuts without a washer. Each wheel proudly carries a 5-year manufacturer warranty, underscoring Northstar's confidence in their product's durability and quality.

Specifications include:

• Wheel Diameter: 22.5"
• Wheel Width: 12.25"
• Compatible Tire Sizes: 385/65R22.5, 425/65R22.5
• Material: Fully Forged 6061 Aluminum
• Finish: Mirror Polish
• Mounting Setup: Stud-Piloted (Budd) Single
• Bolt Pattern: 10 x 11.25"
• Hub Bore Diameter: 8.72"
• Vent Holes: 10 (1.57" Dia)
• Wheel Offset: 2.88"
• Backspacing: 9.75"
• Disc Thickness: 24mm
• Maximum Load: 12,300 lbs
• Maximum Inflation: 130 psi
• Valve Stem: 553E
• Weight: 61 lbs

Replaces Discontinued Alcoa Parts: 823050, 823051, 823052, 823057

Northstar Wheels redefine the standards of heavy-duty wheels, offering unparalleled performance, durability, and elegance for commercial vehicles. With these wheels, drivers enjoy a seamless blend of functionality and style, ensuring their vehicle is equipped to tackle any challenge on the road.

Crafted with meticulous precision, Northstar Wheels introduces a paramount innovation in commercial transportation: the 6061 Aluminum Alloy Billet Wheel. Engineered for durability and performance, these wheels are forged from premium 6061 aluminum alloy, ensuring unmatched mechanical properties compared to traditional cast aluminum or fabricated steel wheels.

At the heart of Northstar's design philosophy is the "Forged For Work" commitment. This is not just a slogan but a promise of enhanced performance and reliability. Each wheel undergoes a meticulous forging process, which significantly improves its mechanical and impact properties. This results in a lighter yet stronger wheel than its cast aluminum counterparts, boasting a superior specific strength ratio over fabricated steel wheels.

One of the standout features is its uniformity, directly contributing to extended tire life by minimizing lateral and radial runouts—common issues that cause wobbly movement and uneven tire wear. Furthermore, the thermal conductivity of aluminum outshines steel by threefold, allowing Northstar wheels to dissipate heat more efficiently. This cool-running advantage prolongs the lifespan of not only the tires but also the brakes and suspension components.

Maintenance is simplified with Northstar wheels. Unlike fabricated steel wheels that require frequent repainting due to corrosion, the natural corrosion resistance of aluminum ensures a longer-lasting, maintenance-free performance. The mirror-polished finish not only adds aesthetic appeal but also withstands the test of time, requiring just a simple polish to restore its shine.
