22.5x10.50 Northstar 10x285mm Hub Pilot Satin Black "Lunar" Front Only

Northstar “Lunar” 22.5” x 10.50 Forged Aluminum Front Wheel – Satin Black

Part #125050BF | Hub Pilot | Front & Pusher Axle Applications | Motorhomes & RVs

Elevate your motorhome or RV with the Northstar “Lunar” Forged Aluminum Wheel, part number 125050BF, featuring a bold satin black finish for a modern, custom appearance. Engineered for front and pusher axle applications, this 22.5 x 10.50 wheel delivers the strength, performance, and style demanded by high-end coaches and luxury RVs.

Built from premium forged aluminum, the Lunar wheel combines heavy-duty capacity with reduced weight compared to steel, improving ride quality, fuel efficiency, and handling. Its hub-pilot mounting, 10x285.75mm bolt pattern, and 220mm hub bore ensure precise fitment and secure installation on leading RV brands. With 10 hand/vent holes and a 5.50” outset, the design also promotes airflow and heat dissipation, extending tire life under demanding travel conditions.

Wheel Specifications

• Style: Lunar

• Part Number: 125050BF

• Size: 22.5” x 10.50”

• Finish: Satin Black

• Position: Front or Pusher Axle Only

• Bolt Pattern: 10-Hole Hub Pilot, 285.75mm Bolt Circle

• Hub Bore: 220mm

• Outset: 5.50”

• Weight: 63 lbs

• Load Rating: 10,500 lbs @ 130 PSI

Approved Tire Size

• 365/70R22.5

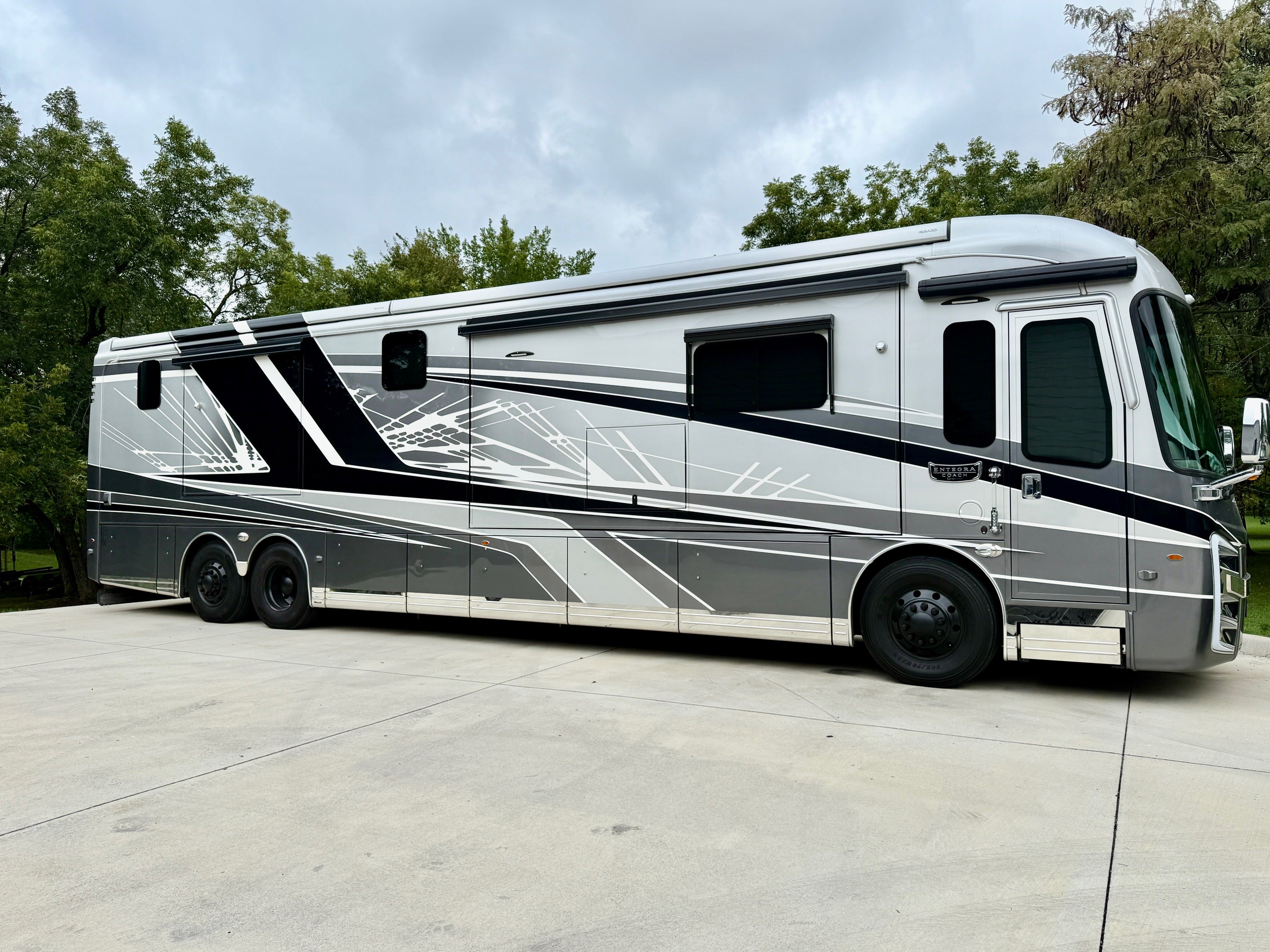

Typical Applications

• Prevost Motorhome

• Newell Coach

• Tiffin Motorhomes

• Fleetwood RV

• Monaco Coach

• Newmar Motorhomes

Key Features

• Modern Satin Black Finish – Premium, understated styling that resists dirt and grime while enhancing the overall look of your RV.

• Forged Aluminum Strength – Lightweight yet heavy-duty construction rated for 10,500 lbs @ 130 PSI.

• Front/Pusher Axle Specific – Purpose-built for precision fitment and optimal performance on motorhomes and coaches.

• Optimized Vent Hole Design – 10 hand/vent holes with 5.50” outset improve airflow, cooling, and tire life.

• Wide Compatibility – Designed to fit leading luxury RV brands and motor coaches.

The Northstar “Lunar” 22.5 x 10.50 Satin Black Forged Aluminum Front Wheel (Part #125050BF) combines style, strength, and performance—making it the ultimate upgrade for high-end motorhomes and RVs.
