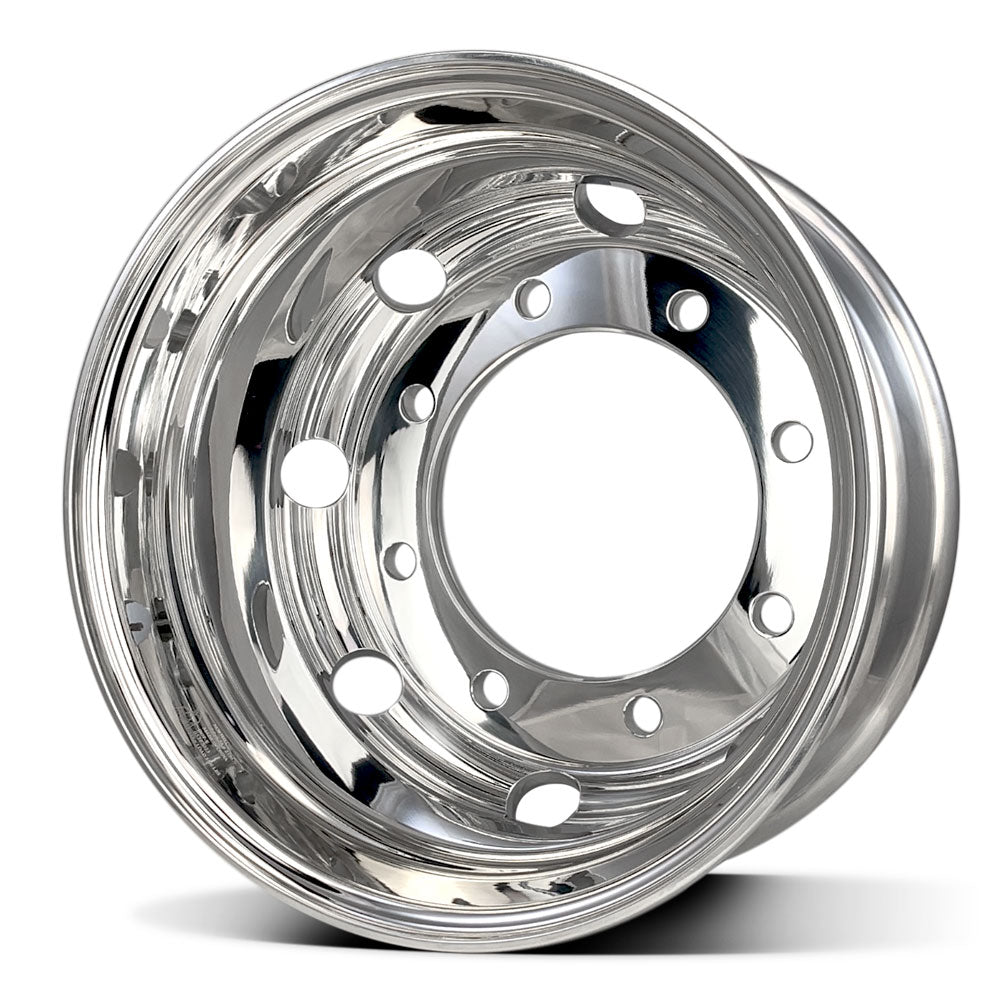

17.5x6.75 Northstar 8x275 Hub Pilot Mirror Polished Both Sides

Size: 17.5 x 6.75

Finish: Mirror Polished Both Sides
Position: *Trailer Only*

8-Hole (1.50"), 275mm Bolt Circle, 220mm Bore
Wheel Offset: 5.55"
Backspacing: N/A
Disc Thickness: 0.83"
Valve Stem: TV554E

Weight: 29 Lbs
Max Load: 5500 Lbs @ 125 PSI
Bolt Hole Diameter: 24mm
Hand Holes: 8

Replaces Alcoa: 663477, 663472, 663487, 663482

• 215/75R17.5
• 235/75R17.5
• 245/70R17.5
